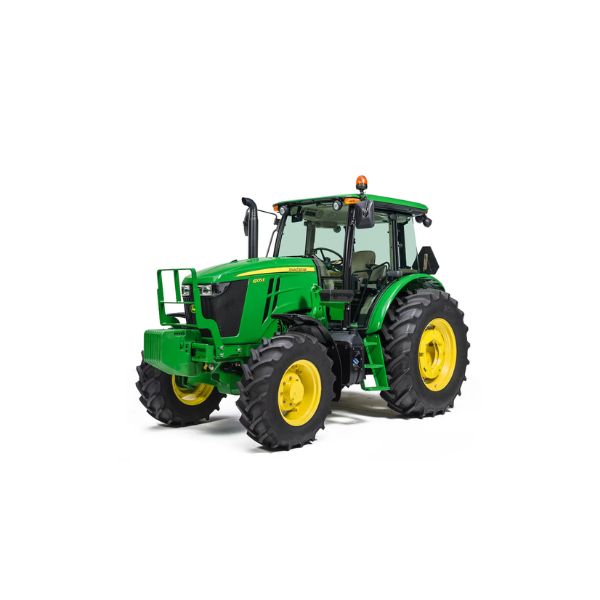

John Deere 6M 105 – Specifications
-
Engine: 116 HP, 4 Cyl , Diesel
-
Drive: 2WD (4WD optional)
-
PTO: 540 / 540E / 1000 RPM
-
Hydraulics: 6,803 kg (rear)
PROS
- Versatile power for utility tasks with IPM boost.
- Efficient Tier 4 engine meets emissions without DEF performance loss.
- Multiple transmission options including IVT for precision.
- Strong hydraulics support loaders/implements.
- Integrated precision ag like JDLink standard.
CONS
- High price point for 105 hp class.
- Base 2WD; 4WD likely adds cost/weight.
- Fuel tank (46 gal) modest for long days.
- Cab weight at 13K lbs limits some agility.
- Service intervals require regular maintenance.
Specifications
General Identification
| Brand | John Deere |
| Model Name | 6M 105 |
| Series | 6M Series |
| Configuration | Agricultural |
| Tractor Class | Utility Tractor |
| Drive Configuration | 2WD (4WD optional) |
Engine
| Engine Manufacturer | John Deere PowerTech |
| Engine Model | PowerTech EWL 4.5L |
| Engine Type | Diesel, Inline |
| Number of Cylinders | 4 |
| Bore × Stroke | - |
| Engine Displacement | 4.5 L (276 cu in) |
| Compression Ratio | - |
| Aspiration | Single Turbocharger with Wastegate |
| Fuel System | High Pressure Common Rail (up to 1500 bar) |
| Injection Pump | Electronically Controlled |
| Rated Engine Speed | 2100 RPM |
| Maximum Engine Power | 116 HP (max), 105 HP @ 2100 RPM (rated) |
| Maximum Torque | 492 Nm @ 1500 RPM |
| Torque Rise | 35-40% |
| Governing Type | Electronic |
| Cooling Fan | Temperature controlled |
| Air Intake System | PowerCore G2 with pre-cleaning |
| Exhaust Orientation | Vertical |
| Emission Standard | Final Tier 4 (DOC + SCR) |
Power Output
| Engine Gross Power | 116 HP |
| PTO Power | 79–88 HP |
| Drawbar Power | 70–75 HP |
| Hydraulic Power Loss | 10% |
Brake System
| Brake Type | Hydraulic Wet Disc |
| Actuation | Independent / Integrated |
| Parking Brake | Electro-Hydraulic |
| Brake Cooling | Oil Bath |
PTO (Power Take-Off)
| PTO Type | Independent Electro-Hydraulic |
| PTO Engagement | Push-Button |
| PTO Speed | 540 / 540E / 1000 RPM |
| PTO Shaft | 20-Spline / 21-Spline |
| PTO Direction | Clockwise |
| Ground Speed PTO | Optional |
Hydraulic System
| Hydraulic Type | Closed Center / Load Sensing |
| Hydraulic Pump | Variable Displacement |
| Max Hydraulic Pressure | 200 bar |
| Lifting Capacity | 6,803 kg (rear) |
| Lift Control | Position / Draft / Mixed |
| 3-Point Hitch | Yes |
| Hitch Category | Category 2 / 3N |
| Lower Link Ends | Ball Type |
| Auxiliary Valve | Up to 5 (optional) |
| Response Control | Electronic |
Fuel, Fluids & Capacities
| Fuel Tank | 175 L (46.2 gal) |
| Engine Oil | 17 L (4.5 gal) |
| Transmission Oil | 57 L |
| Hydraulic Oil | Shared / 100+ L |
| Coolant | 20 L (5.3 gal) |
Transmission & Drivetrain
| Clutch Type | Wet Multi-Disc (optional) |
| Clutch Diameter | Not specified |
| Transmission Type | PowrQuad Plus / CommandQuad / AutoPowr IVT |
| Gearbox Configuration | Powershift / CVT |
| Forward Gears | 20 / Infinite (IVT) |
| Reverse Gears | 20 / Infinite (IVT) |
| Forward Speed Range | 0.06 – 50 km/h |
| Reverse Speed Range | 0.06 – 50 km/h |
| Final Drive | Planetary |
| Differential Lock | Electro-Hydraulic |
Tyres & Axle Data
| Tyre Type | R1W Radial Agricultural |
| Front Tyres | 380/85R24 |
| Rear Tyres | 460/85R34 |
| Front Axle | Independent Front (IFA) |
| Rear Axle | Planetary |
| Track Width (Front) | Adjustable |
| Track Width (Rear) | Adjustable |
Electrical & Electronics
| Electrical System | 12V / 14V |
| Battery Capacity | 2 x 925 CCA |
| Alternator Output | 14V / 200A |
| Starter Motor | Electric 4.0 kW |
| Instrument Cluster | Digital LCD |
| Warning Indicators | Oil, Temp, Charge, DEF |
Steering System
| Steering Type | Hydrostatic Power Steering |
| Steering Gear | Load-Sensing |
| Turning Radius (with brakes) | ~4.5 m |
| Steering Column | Adjustable / Tilt-Telescoping |
Operator Environment
| Seat | Adjustable Air Suspension |
| Suspension Seat | Standard |
| ROPS | Foldable Standard / Cab Optional |
| Canopy | Optional |
| Footstep | Anti-Slip |
| Control Layout | Ergonomic Joystick Optional |
Implement Compatibility Matrix
| MB Plough | Yes |
| Disc Harrow | Yes |
| Cultivator | Yes |
| Rotavator (5–6 ft) | Yes |
| Thresher | Yes |
| Baler | Yes |
| Trailer (Hydraulic) | Yes |
Dimensions & Weight
| Wheelbase | 2400 mm |
| Overall Length | 4290 mm |
| Overall Height | 2800 mm |
| Overall Width | 2560 mm |
| Minimum Ground Clearance | 520 mm |
| Unladen Weight | 6250 kg |
| Max Permissible Weight | 9500 kg |
