Best for
- Mowing, baling and feeding
- Frequent loader operation
- Mixed farms needing 88 rated PTO HP
- Buyers wanting IVT availability

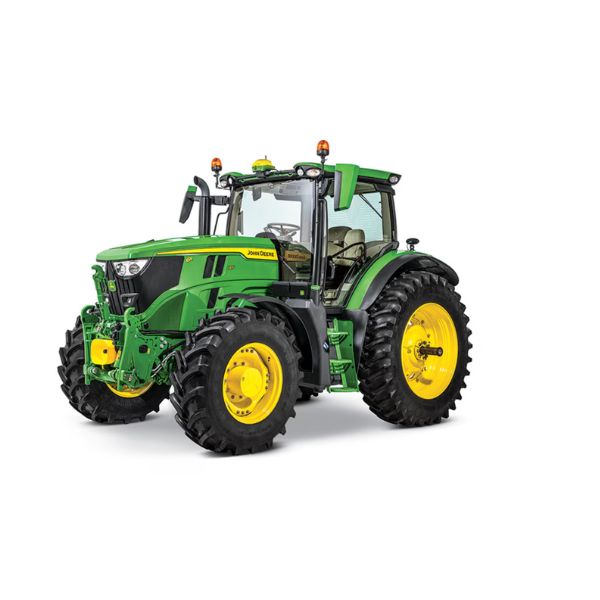

John Deere 6M 115
A detailed, independently maintained profile of the John Deere 6M 115, including key capabilities, practical fit and full specifications.
MODEL6M 115
DRIVEMFWD; 2WD availability varies by configuration
WEIGHT6,250 kg base
MARKETUnited States / Final Tier 4 / current public configuration data
Engine power
115 HP
115 HP rated / 126 HP maximum
PTO output
88 HP
88 HP rated / 106 HP with IPM
Rear lift
2,750 kg
2,750 kg standard / 3,600 kg optional
Transmission
24-speed PowrQuad Plus; optional 16/24-speed AutoQuad/CommandQuad or AutoPowr IVT
Partial powershift / full powershift / IVT, configuration-dependent
Tractor overview
The John Deere 6M 115 adds useful output to the short-wheelbase 6M platform without sacrificing loader-friendly dimensions. The current US specification lists a 4.5-litre four-cylinder PowerTech EWL engine, 115 rated horsepower, 126 maximum horsepower, 88 rated PTO horsepower and 106 PTO horsepower with Intelligent Power Management. A 2,400 mm wheelbase and 4.3 m turning radius keep it maneuverable, while transmission choices include PowrQuad Plus, AutoQuad Plus, CommandQuad Plus and AutoPowr IVT. Hydraulic output is 80 L/min standard or 114 L/min optional. The current US page lists a Category 2 rear hitch, while other regional configurations may use 2/3N hardware; the JSON therefore records the US specification and flags configuration dependence. The 6M 115 is a strong fit for mowing, baling, feeding and loader work where the 6M 105’s PTO reserve may feel tight. Buyers should still verify pump, hitch and transmission options on the exact machine.
Who this tractor suits
Not ideal for
- Work requiring the 6M 130/140 hydraulic and power margin
- Buyers expecting every option in the base weight
Practical specification guide
What the headline specifications mean during real tractor work.
Rated power versus boost power
John Deere 6M 115 uses a 4.5 L (275 cu in.) engine rated at 115 HP rated / 126 HP maximum, with 538 Nm maximum torque and 88 HP rated / 106 HP with IPM at the PTO. Use rated PTO output for continuous implement sizing and treat IPM/maximum figures as task-dependent reserve.
Transmission selection
Available transmission specification is 24-speed PowrQuad Plus; optional 16/24-speed AutoQuad/CommandQuad or AutoPowr IVT; the published travel-speed figure is Up to 50 km/h. PowrQuad favors straightforward manual range work, automated variants reduce shifting effort, and IVT offers the finest speed control.
Hydraulic and rear-hitch capacity
The hydraulic system is Pressure compensated standard; PFC load-sensing optional with 80 L/min standard / 114 L/min optional. Rear lift is 2,750 kg standard / 3,600 kg optional on a Category 2 hitch, so pump and hitch options should be matched to loader demand and mounted-implement weight.
PTO and remote-valve planning
The tractor uses Electrohydraulic, oil-cooled multi-disc rear PTO, with 540 / 1,000 rpm; economy PTO availability varies and In-cab switch; optional fender control. The published remote-valve provision is 2 rear SCVs standard; up to 4 rear and 3 mid optional, which should be checked against every implement's hydraulic-function count.
Chassis, transport and maintenance
A 2,400 mm wheelbase, 6,250 kg base operating weight, 9,500 kg maximum permissible weight and 462 mm clearance affect turning space, payload and transport. Service guidance is engine oil 500 h; transmission/hydraulic 1,500 h; coolant 6,000 h.
Configuration & variant guide
Options and market differences that can change how this tractor is equipped or used.
| Option | Available setup | What it changes |
|---|---|---|
| Transmission package | 24-speed PowrQuad Plus; optional 16/24-speed AutoQuad/CommandQuad or AutoPowr IVT | Transmission choice changes field-speed control, road behavior, automation level and price; compare exact ratios and top-speed homologation on the build sheet. |
| Hydraulic pump and hitch package | Pump: 80 L/min standard / 114 L/min optional; rear hitch: 2,750 kg standard / 3,600 kg optional; category: Category 2 | Standard and optional pumps/hitches can materially change loader cycle performance and mounted-implement capacity, so base and upgraded figures must not be mixed. |
| Cab, open-station and controls | Cab or open operator station; availability varies by model and market; Air-suspension seat standard on cab specification; Right-hand console; Compact CommandARM optional; cab noise: 70 dBA cab specification; Air conditioning: Optional | Operator-station and control-console choices affect visibility, comfort, machine weight and access to electronic functions. |
| Front and rear equipment | Drive: MFWD; 2WD availability varies by configuration; front hitch: Optional; front PTO: Optional; loader compatible: Yes; loader capacity: Not specified | Front equipment and loader choices change axle load, ballast and tire requirements; unavailable figures should be confirmed from the exact loader and tractor pairing. |
| Order-code and regional variant | United States / Final Tier 4 specification | Axles, tires, PTO modes, SCV count, hitch ends and operator station can vary by order code and market. Validate the serial-specific build rather than assuming every listed option is standard. |
CHECKPOINT 06
Strengths and considerations
What stands out
- Broad transmission portfolio including IVT availability.
- Intelligent Power Management adds reserve in qualifying PTO and transport work.
- Configurable hydraulic pump and rear-hitch packages.
- Factory JDLink and modern operator-display options.
Check before buying
- Published specifications vary by order code and operator-station type.
- Optional pump, hitch, axle and suspension packages increase price.
- Dealer listings can mix regional horsepower and hitch standards.
CHECKPOINT 07
ID
EN
SP
SP
PT
HY
SP
TR
TY
EL
ST
OP
IM
DM
SP
CN
Full specifications
94 data points across 16 categories.
ID
General Identification
7 fields
⌄
- Brand
- John Deere
- Model Name
- 6M 115
- Series
- 6M Series
- Configuration
- Cab or open operator station; availability varies by model and market
- Tractor Class
- Utility Tractor
- Drive Configuration
- MFWD; 2WD availability varies by configuration
- Country of Manufacture
- Germany
EN
Engine
18 fields
⌄
- Engine Manufacturer
- John Deere
- Engine Model
- 4045HL290
- Engine Type
- PowerTech EWL inline diesel
- Number of Cylinders
- 4
- Bore × Stroke
- 106.5 × 127 mm
- Engine Displacement
- 4.5 L (275 cu in.)
- Aspiration
- Wastegate turbocharger with air-to-air aftercooling
- Fuel System
- High-pressure common rail (HPCR)
- Injection Pump
- Electronically controlled HPCR
- Rated Engine Speed
- 2,100 rpm
- Maximum Engine Power
- 115 HP rated / 126 HP maximum
- Maximum Torque
- 538 Nm
- Torque Rise
- 40% PTO torque rise
- Governing Type
- Electronic
- Cooling Fan
- Optional reversible fan
- Air Intake System
- PowerCore G2 air cleaner
- Exhaust Orientation
- Vertical
- Emission Standard
- Final Tier 4; DPF, DOC and SCR
SP
Power Output
2 fields
⌄
- Engine Gross Power
- 115 HP rated / 126 HP maximum
- PTO Power
- 88 HP rated / 106 HP with IPM
SP
Brake System
4 fields
⌄
- Brake Type
- Hydraulic wet-disc
- Actuation
- Hydraulic
- Parking Brake
- Park lock / wet-disc system
- Brake Cooling
- Oil-cooled
PT
PTO (Power Take-Off)
4 fields
⌄
- PTO Type
- Electrohydraulic, oil-cooled multi-disc rear PTO
- PTO Engagement
- In-cab switch; optional fender control
- PTO Speed
- 540 / 1,000 rpm; economy PTO availability varies
- PTO Shaft
- 6- and 21-spline shafts
HY
Hydraulic System
11 fields
⌄
- Hydraulic Type
- Pressure compensated standard; PFC load-sensing optional
- Hydraulic Pump
- 80 L/min standard / 114 L/min optional
- Lifting Capacity
- 2,750 kg standard / 3,600 kg optional
- Lift Control
- Electronic lower-link sensing
- 3-Point Hitch
- Yes
- Hitch Category
- Category 2
- Lower Link Ends
- Ball or hook ends, configuration-dependent
- Auxiliary Valve
- 2 rear SCVs standard; up to 4 rear and 3 mid optional
- Response Control
- Mechanical or electrical joystick
- Front Hitch Available
- Optional
- Front PTO Available
- Optional
SP
Fuel, Fluids & Capacities
5 fields
⌄
- Fuel Tank
- 175 L
- Engine Oil
- 17 L
- Transmission Oil
- 53 L powershift / 60 L IVT
- Hydraulic Oil
- Shared transmission-hydraulic reservoir
- Coolant
- 20 L
TR
Transmission & Drivetrain
8 fields
⌄
- Clutch Type
- Wet multi-disc, transmission-dependent
- Transmission Type
- 24-speed PowrQuad Plus; optional 16/24-speed AutoQuad/CommandQuad or AutoPowr IVT
- Gearbox Configuration
- Partial powershift / full powershift / IVT, configuration-dependent
- Forward Gears
- 16–24 or stepless
- Reverse Gears
- 16–24 or stepless
- Forward Speed Range
- Up to 50 km/h
- Final Drive
- Three-planetary final reduction
- Differential Lock
- Electrohydraulic rear differential lock
TY
Tyres & Axle Data
7 fields
⌄
- Tyre Type
- Agricultural radial; tire choice varies by order
- Front Tyres
- 380/85R24
- Rear Tyres
- 460/85R34
- Front Axle
- MFWD; Triple-Link Suspension optional on applicable builds
- Rear Axle
- Flange or rack-and-pinion rear axle, configuration-dependent
- Track Width (Front)
- Adjustable
- Track Width (Rear)
- Adjustable
EL
Electrical & Electronics
6 fields
⌄
- Electrical System
- 12 V electrical system
- Battery Capacity
- 12 V, 154 Ah standard / 174 Ah optional
- Alternator Output
- 14 V, 125 A standard / 250 A optional
- Starter Motor
- Electric
- Instrument Cluster
- Digital cornerpost display; G5 optional
- Warning Indicators
- Engine, DEF, transmission and system warnings
ST
Steering System
4 fields
⌄
- Steering Type
- Dynamic load-sensing hydrostatic steering
- Steering Gear
- Hydrostatic
- Turning Radius (with brakes)
- 4.3 m
- Steering Column
- Tilt/telescoping steering
OP
Operator Environment
6 fields
⌄
- Seat
- Air-suspension seat standard on cab specification
- Suspension Seat
- Standard on cab specification
- ROPS
- Cab or open operator station; availability varies by model and market
- Canopy
- Open-station canopy optional
- Footstep
- Anti-slip entry steps
- Control Layout
- Right-hand console; Compact CommandARM optional
IM
Implement Compatibility Matrix
1 field
⌄
- Front Loader Compatible
DM
Dimensions & Weight
7 fields
⌄
- Wheelbase
- 2,400 mm
- Overall Length
- 4,290 mm
- Overall Height
- 2,800 mm
- Overall Width
- 2,460 mm
- Minimum Ground Clearance
- 462 mm
- Unladen Weight
- 6,250 kg base
- Max Permissible Weight
- 9,500 kg
SP
Ownership & Cost
2 fields
⌄
- Service Interval
- Engine oil 500 h; transmission/hydraulic 1,500 h; coolant 6,000 h
- Availability / Market
- United States / Final Tier 4 specification
CN
Comfort & Noise
2 fields
⌄
- Cabin Noise Level (dB)
- 70 dBA cab specification
- Air Conditioning
- Optional
No specifications match your search.
CHECKPOINT 08
Sources and verification
Last manually verifiedJuly 24, 2026
Market / variantUnited States / Final Tier 4 / current public configuration data
Reference material
John Deere 6M 115 official product and specifications page
Accuracy note: Specifications represent current US public data; transmission, hitch, hydraulic, axle, tire and operator-station values vary by order code. The current US page lists a Category 2 rear hitch, so that value is used instead of mixing a 2/3N regional configuration.
RELATED
You may also compare

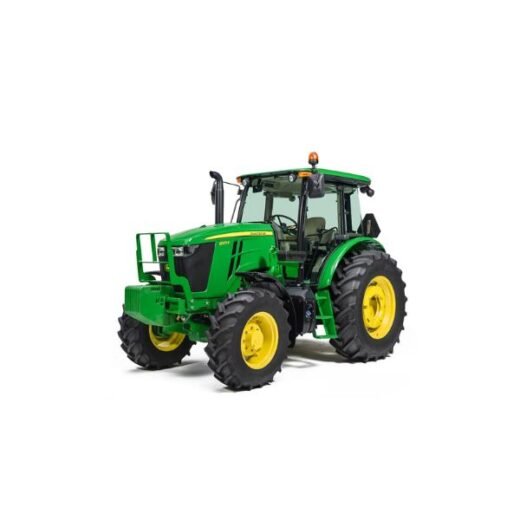

John Deere 6M 105
- Engine
- 105 HP rated / 116 HP max, 4.5 L (275 cu in.)
- PTO
- 79 HP rated / 88 HP with IPM
- Hydraulics
- 80 L/min standard / 114 L/min optional
John Deere 6M 130
- Engine
- 130 HP rated / 143 HP max, 4.5 L (275 cu in.)
- PTO
- 100 HP rated / 118 HP with IPM
- Hydraulics
- 80 L/min standard / 114 L/min optional

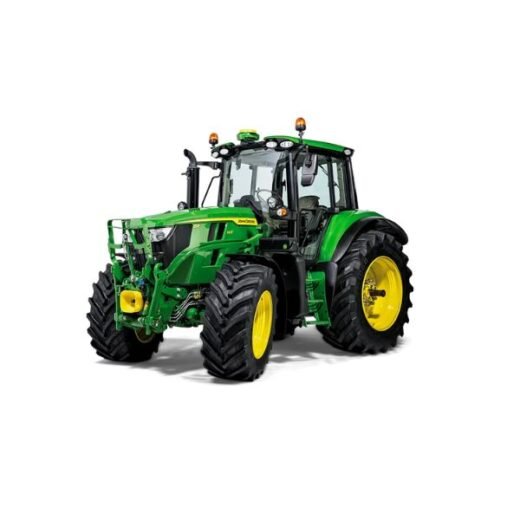

John Deere 6M 140
