Best for
- Higher-demand hay and PTO work
- Loader and transport duties
- Mixed farms wanting premium cab controls
- Buyers needing 111 PTO HP

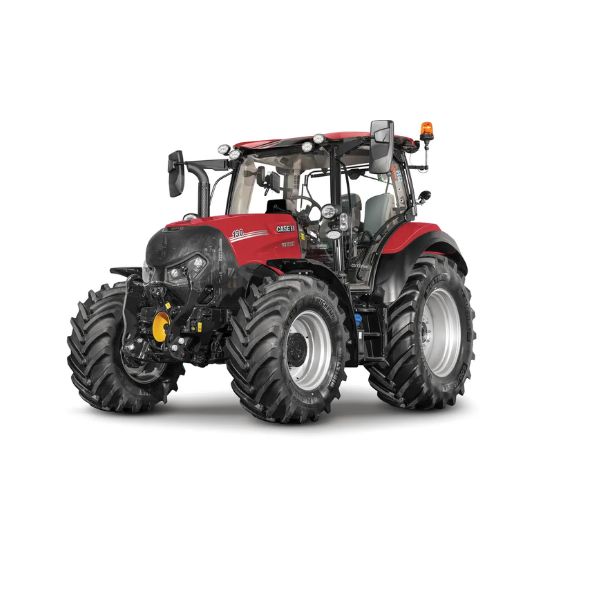

Case IH Vestrum 130
A detailed, independently maintained profile of the Case IH Vestrum 130, including key capabilities, practical fit and full specifications.
MODELVestrum 130
DRIVEMFD (4WD) only
WEIGHT5,851 kg
MARKETUnited States / Tier 4 Final / cab-only MFD specification
Engine power
130 HP
130 HP rated / 140 HP maximum
PTO output
111 HP
111 HP
Rear lift
3,039 kg
3,039 kg standard rear-hitch lift
Transmission
ActiveDrive 8 dual-clutch powershift / CVXDrive CVT
24F/24R ActiveDrive 8 or stepless CVXDrive
Tractor overview
The Case IH Vestrum 130 is the highest-output model in the North American Vestrum range. Its 4.5-litre four-cylinder turbocharged FPT engine is rated at 130 horsepower, reaches 140 maximum horsepower and delivers 111 PTO horsepower. The official specification sheet lists cab-only construction, MFD drive, a choice of 24×24 ActiveDrive 8 dual-clutch powershift or stepless CVXDrive, and a 40 km/h maximum transport speed. A closed-centre load-sensing hydraulic system supplies 108 L/min, and the Category 2 rear hitch carries a published 3,039 kg standard lift rating. The tractor weighs 5,851 kg and uses a 2,490 mm wheelbase, so it combines a relatively compact footprint with useful stability. It is a strong fit for mowing, baling, loader work and transport where premium controls are valuable. The Vestrum 120 has the same chassis and hydraulic figures, so the 130 mainly earns its higher price through additional engine and PTO output rather than extra lift capacity.
Who this tractor suits
Not ideal for
- Open-station buyers
- Operators who do not need more output than the Vestrum 120
Practical specification guide
What the headline specifications mean during real tractor work.
Engine and PTO workload
Case IH Vestrum 130 uses a 4.5 L (273 cu in.) engine rated at 130 HP rated / 140 HP maximum, with 111 HP at the PTO. Size balers, mowers and other continuously driven implements from the PTO figure, not the temporary maximum engine rating.
Transmission choice in real work
Buyers can choose ActiveDrive 8 dual-clutch powershift / CVXDrive CVT. The available layout is 24F/24R ActiveDrive 8 or stepless CVXDrive, with a maximum travel speed of Up to 40 km/h; ActiveDrive 8 suits stepped field and transport work, while CVXDrive favors seamless speed control.
Hydraulic implement performance
The closed-centre load sensing system delivers 28.5 gpm (108 L/min) and the rear hitch is rated at 3,039 kg standard rear-hitch lift. This is the key capacity check for loaders, hydraulic motors and mounted implements.
PTO and hitch compatibility
The Category 2 rear hitch works with Independent rear PTO offering 540 / 540E / 1,000 rpm. Confirm shaft speed, implement category, drawbar load and hydraulic connections on each attachment.
Chassis and service planning
A 2,490 mm wheelbase and 5,851 kg base weight provide a stable utility-tractor platform but increase transport and soil-compaction considerations. Published maintenance guidance lists Engine service interval published as 600 hours.
Configuration & variant guide
Options and market differences that can change how this tractor is equipped or used.
| Option | Available setup | What it changes |
|---|---|---|
| Transmission variant | ActiveDrive 8 dual-clutch powershift / CVXDrive CVT | ActiveDrive 8 provides fixed powershift ratios and familiar step changes; CVXDrive provides stepless speed control and can reduce operator workload in variable-speed tasks. |
| Cab and control package | Cab only; Air-suspension seat; MultiControl armrest / transmission controls | This is a cab-only configuration with air conditioning listed as Yes. Seat, armrest and control package choices affect comfort during long loader or transport shifts. |
| Remote-valve package | 2 mechanical + 1 electronic standard; optional packages available | The number and type of mechanical or electronic rear remotes determines how many hydraulic implement functions can be controlled directly from the tractor. |
| Front equipment package | Front hitch: Optional; front PTO: Optional; published loader capacity: 1,590 kg maximum with L113 loader | Front hitch, front PTO and loader equipment are configuration-dependent and can change axle loading, ballast needs and total cost. |
| Regional and dealer specification | United States / North American specification | Tires, lighting, PTO economy modes, hydraulic valves and electronic features may differ by order code; compare the dealer build sheet with the North American source specification. |
CHECKPOINT 06
Strengths and considerations
What stands out
- Choice of ActiveDrive 8 powershift or CVXDrive CVT.
- 108 L/min closed-centre load-sensing hydraulics.
- Cab-only premium operator environment.
- Officially matched L113 loader.
Check before buying
- No open-station North American configuration.
- Transmission and front-equipment options raise configured cost.
- North American hitch rating is lower than some European published variants.
CHECKPOINT 07
ID
EN
SP
SP
PT
HY
SP
TR
TY
EL
ST
OP
IM
DM
SP
CN
Full specifications
75 data points across 16 categories.
ID
General Identification
6 fields
⌄
- Brand
- Case IH
- Model Name
- Vestrum 130
- Series
- Vestrum Series
- Configuration
- Cab-only North American configuration
- Tractor Class
- Utility Tractor
- Drive Configuration
- MFD (4WD) only
EN
Engine
12 fields
⌄
- Engine Manufacturer
- FPT Industrial
- Engine Model
- 4.5 L FPT
- Engine Type
- 4-cylinder turbocharged diesel
- Number of Cylinders
- 4
- Engine Displacement
- 4.5 L (273 cu in.)
- Aspiration
- Turbocharged
- Fuel System
- Common-rail diesel
- Injection Pump
- Electronically controlled common rail
- Rated Engine Speed
- 2,200 rpm
- Maximum Engine Power
- 130 HP rated / 140 HP maximum
- Governing Type
- Electronic
- Emission Standard
- Tier 4B/Final – Stage V; SCR
SP
Power Output
2 fields
⌄
- Engine Gross Power
- 130 HP rated / 140 HP maximum
- PTO Power
- 111 HP
SP
Brake System
3 fields
⌄
- Brake Type
- Hydraulic wet-disc
- Actuation
- Hydraulic
- Brake Cooling
- Oil-cooled
PT
PTO (Power Take-Off)
4 fields
⌄
- PTO Type
- Independent rear PTO
- PTO Engagement
- Electrohydraulic
- PTO Speed
- 540 / 540E / 1,000 rpm
- PTO Shaft
- Interchangeable PTO shaft
HY
Hydraulic System
11 fields
⌄
- Hydraulic Type
- Closed-centre load sensing
- Hydraulic Pump
- 28.5 gpm (108 L/min)
- Lifting Capacity
- 3,039 kg standard rear-hitch lift
- Lift Control
- Electronic draft control with lower-link sensing
- 3-Point Hitch
- Yes
- Hitch Category
- Category 2
- Lower Link Ends
- Category 2 flex-link ends
- Auxiliary Valve
- 2 mechanical + 1 electronic standard; optional packages available
- Response Control
- Mechanical/electronic, configuration-dependent
- Front Hitch Available
- Optional
- Front PTO Available
- Optional
SP
Fuel, Fluids & Capacities
1 field
⌄
- Fuel Tank
- 180 L
TR
Transmission & Drivetrain
8 fields
⌄
- Clutch Type
- Wet multi-disc
- Transmission Type
- ActiveDrive 8 dual-clutch powershift / CVXDrive CVT
- Gearbox Configuration
- 24F/24R ActiveDrive 8 or stepless CVXDrive
- Forward Gears
- 24 or stepless
- Reverse Gears
- 24 or stepless
- Forward Speed Range
- Up to 40 km/h
- Reverse Speed Range
- Up to 40 km/h
- Differential Lock
- Electrohydraulic differential lock
TY
Tyres & Axle Data
3 fields
⌄
- Tyre Type
- Agricultural radial; size varies by order
- Front Axle
- Class 1.75 MFD front axle
- Rear Axle
- Flange rear axle
EL
Electrical & Electronics
6 fields
⌄
- Electrical System
- 12 V
- Battery Capacity
- 176 Ah, 1,300 EN CCA
- Alternator Output
- 200 A
- Starter Motor
- Electric
- Instrument Cluster
- Digital display; AFS options vary
- Warning Indicators
- Engine, DEF and system warnings
ST
Steering System
3 fields
⌄
- Steering Type
- Hydrostatic power steering
- Steering Gear
- Hydrostatic
- Steering Column
- Tilt and telescopic
OP
Operator Environment
6 fields
⌄
- Seat
- Air-suspension seat
- Suspension Seat
- Standard
- ROPS
- Cab only
- Canopy
- No
- Footstep
- Integrated anti-slip steps
- Control Layout
- MultiControl armrest / transmission controls
IM
Implement Compatibility Matrix
2 fields
⌄
- Front Loader Compatible
- Front Loader Lift Capacity (kg)1,590 kg maximum with L113 loader
DM
Dimensions & Weight
4 fields
⌄
- Wheelbase
- 2,490 mm
- Overall Length
- 4,397 mm to end of lower links
- Overall Height
- 2,835 mm
- Unladen Weight
- 5,851 kg
SP
Ownership & Cost
2 fields
⌄
- Service Interval
- Engine service interval published as 600 hours
- Availability / Market
- United States / North American specification
CN
Comfort & Noise
2 fields
⌄
- Cabin Type
- Full cab AC
- Air Conditioning
- Yes
No specifications match your search.
CHECKPOINT 08
Sources and verification
Last manually verifiedJuly 24, 2026
Market / variantUnited States / Tier 4 Final / cab-only MFD specification
Reference material
Case IH Vestrum 130 official product page Case IH Vestrum specification sheet Case IH L113 loader page
Accuracy note: North American Vestrum spec-sheet values are used. European Vestrum variants publish different hitch, hydraulic and weight figures, so those regional values were not mixed into this entry.
RELATED
You may also compare
Case IH Vestrum 120
- Engine
- 120 HP rated / 130 HP max, 4.5 L
- PTO
- 102 HP, 540/540E/1,000
- Hydraulics
- 108 L/min, 3,039 kg rear lift

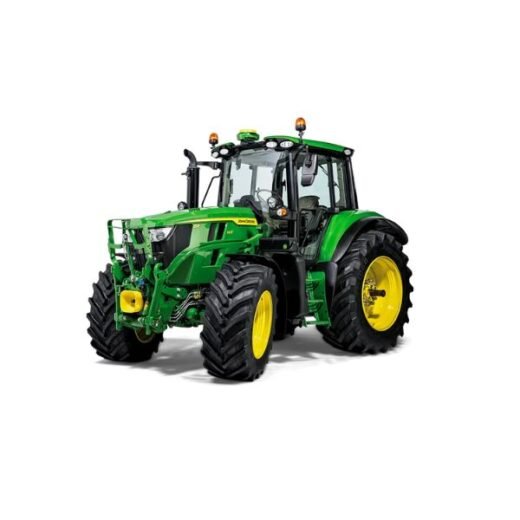

John Deere 6M 140
- Engine
- 140 HP rated / 154 HP max, 4.5 L (275 cu in.)
- PTO
- 111 HP rated / 129 HP with IPM
- Hydraulics
- 80 L/min standard / 114 L/min optional

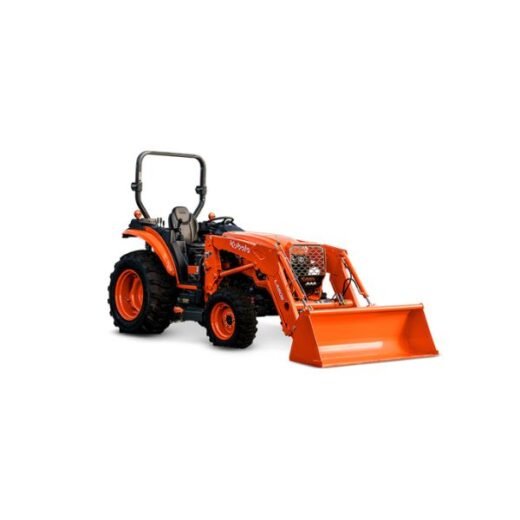

Kubota L5070
- Engine
- 50 HP, 4-cyl, 2.434 L (2,434 cc)
- PTO
- 39.8 HP, rear 540 PTO
- Hydraulics
- 37.2 L/min, 1,750 kg at lift points

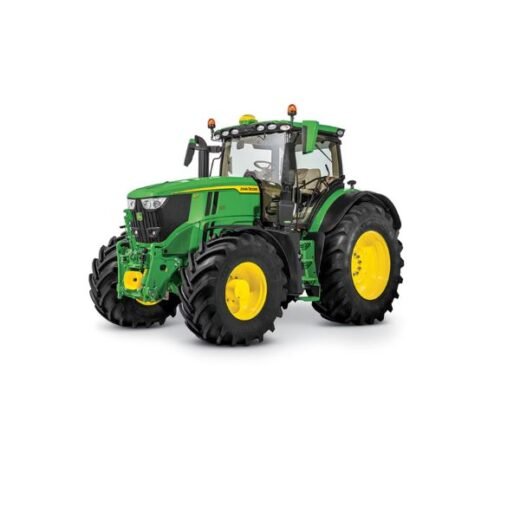

John Deere 6M 145
